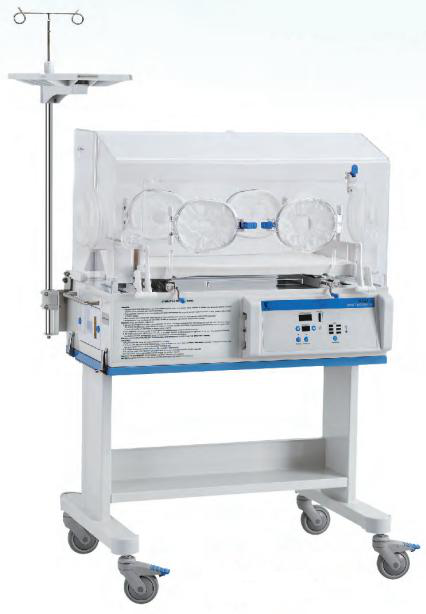

Wondcon 610I Infant Incubator
Wondcon 610I
Accuracy and durability,Mindry quality,competitive price!
PRODUCT DETAILS
Introduction
Air mode control, Set temperature and Air temperature are displayed separately
Passive humidification
Multiple failure alarm indications
Inclination of bassinet is adjustable
RS-232 connector for data output
Oxygen input interface, Oxygen supply system
Low noise DC motor
Optional Configuration
“ > 37°C" temperature override mode function, Vertical height adjustment stand (VHA stand), Weighing system, Neonate Bilirubin Phototherapy Equipment model: XHZ-90L (fixed model), Baby mode and SpO2
Standard Configuration
Hood, Base, Controller, I.V pole, Tray
Environmental temperature
Operating range: 20°C-30°C(Set temperature should be 3 C higher than the environment temperature)
Ambient air velocity: <0.3m/s
Product Packaging
Package: The whole unit is packed into one carton
Dimension: 1085mm x 640mm x 1120mm
Gross Weight: 80Kg
Specification
Power requirement: AC220V-230V/50Hz or AC110-120V/50-60HZ, 850VA Control Mode: Air mode control Air temperature control range: 25°C-37 °C (override mode： 37°C-39°C is optional) The temperature fluctuation range between incubator temperature and average incubator temperature (Under stable temperature condition)： ≦O.5°C Temperature uniformity： 0.8°C(mattress is on the horizontal position) Inclination of the bassinet: ± 12° Noise inside hood: ≦45dB(A) Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on. The average value of total irradiance for bilirubin Ebi max of photo -therapy equipment: ≧640 uW/cm2 ; ≧1300 uW/cm2 Built-in timer range:0〜9999 hrs 59min Accuracy Of weight display:± 1 % (equipped with weighing system) |
