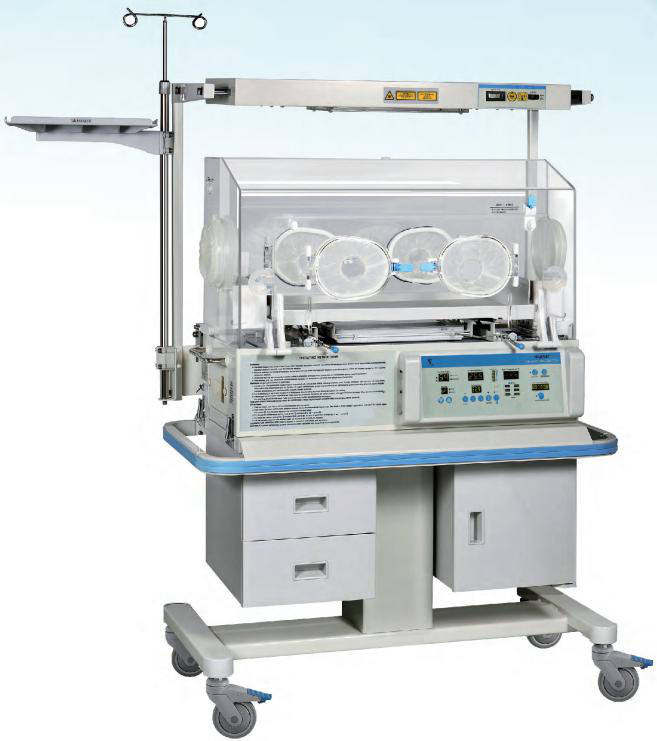

Wondcon 610G Infant Incubator
Wondcon 610G
Accuracy and durability,Mindry quality,competitive price!
PRODUCT DETAILS
Introduction
Two control modes: Air mode and Baby mode servo controlled by micro-computer
Set temperature, Air temperature, Baby temperature are displayed separately
Humidity concentration system
Inclination of bassinet is adjustable
Multiple failure alarm indications
RS-232 connector for data output
Low noise DC motor
Oxygen input interface Configured with fixed Neonate Bilirubin Phototherapy Equipment which is XHZ-90 with blue fluorescent lamp as the upper light source; or fixed Neonate Bilirubin Phototherapy Equipment which is XHZ-90L with blue LED is optional
Configured with fixed Neonate Bilirubin Phototherapy Equipment with SMD blue LED under the bassinet as the nether light source
Standard Configuration
Main body, mobile cabinet, temperature controller, Hood, I.V. Pole with shelf, Skin temperature sensor, mattress, fixed Neonate Bilirubin Phototherapy Equipment which is XHZ-90 with blue fluorescent lamp as the upper light source, fixed Neonate Bilirubin Phototherapy Equipment with SMD blue LED under the bassinet.
Environmental temperature
Operating range: 20°C〜30°C(Set temperature should be 3°C higher than the environment temperature)
Ambient air velocity: ≦0.3m/s
Optional Configuration
"> 37 C" temperature override mode function, Vertical height adjustment stand(VHA stand), Weighing system, Neonate Bilirubin Phototherapy Equipment which is XHZ-90L with blue LED as upper light source and Disposable skin temperature sensor, SpO2.
Product Packaging
Package: Main body and Cabinet are packed into separate
cartons Size (Main body): 1085mm x 640mm x 910mm
(Cabinet): 1125mm x 665mm x 725mm
Gross Weight (Main body): 78Kg
(Cabinet): 68Kg
Specification
Power supply: AC220V-230V/50Hz or AC110-120V/50-60HZ, 1000VA Control Mode: Air mode and Baby mode controlled by microcomputer Air temperature control range: 25°C-37°C(override mode37°C-39°c ) Baby temperature control range: 34°C-37°C (override mode 37°C-38°C) Accuracy of skin temperature sensor: ± 0.2°C Variability of temperature: ≦O.5°C Uniformity of temperature: ≦0.8 °C (mattress is on the horizontal position) Humidity display range: 0%RH ~ 99%RH Humidity control rang: 20% 〜90%RH Inclination of the bassinet: ±12° Noise inside hood: ≦45dB(A) (Environment noise =≦35dB(A)) Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on. The average value of total irradiance for bilirubin Ebi max of phototherapy equipment:≧640 u W/cm2 (blue fluorescent lamp) ≧1300 u W/cm2 (blue LED) The average value of total irradiance for bilirubin Ebi max of phototherapy equipment under bassinet:≧800 u W/cm2 (with SMD LED) Built-in timer range: 0〜9999 hrs 59min Accuracy Of weight display:± 1 % (equipped weighing system) |
