Wondcon OSL 318 Surgical Light
Wondcon OSL 318
Wondcon OSL 318 series halogen Operation shadowless lamp. Full focus control,high color temperature, a complete array of mounting options and low cost make the OSL 318 series a truly great value.
PRODUCT DETAILS
Features
Available optional camera system
Two light heads are available 700mm diameter lamp holder,Illumination 160000≥ Ec≥80000 500mm diameter lamp holder,Illumination 120000≥ Ec≥60000
The removable handle sheath can be disinfected at the high temperature of 135℃
The multi-flake retroreflector made of imported aluminum sheet has the features of no coating film and never fading
Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.

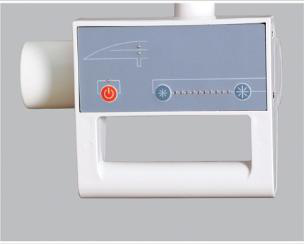

Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination and boasting brightness memory.
One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2 second when the main bulb malfunctions, and it has indicators for the damage of main or standby bulb.
12 months warranty
Options
1,Video Camera: 1080P High definition
2,Monitor Arm: Provides options for Hi-Def
3,Solo arm or in combination with lights.
Video Camera
Monitor with ceiling system 19 inch
Specification
Wondcon OSL 318 LED series ceiling halogen Operation shadowless lamp
| Item | Specification |
| Diameter of light head (cm) | Combined type |
| Illumination(lux) | 700mm diameter lamp holder,Illumination 160000≥Ec≥80000 500mm diameter lamp holder,Illumination 120000≥Ec≥60000 |
| Color temperature(K) | 4500±500 |
| Color rendering index(RA) | 100≥Ra≥85 |
| Diameter of Spot(cm) | 10-28 |
| Depth of light beam(mm) | ≥700 |
| Brightness level adjustment | CPU light diammer |
| The value of the total irradiance | <6m W/m²lx |
| Service range for temperature rise | ≤10℃ |
Total irradiance (temperature rise on the head of patient under surgical operation≤2℃） | ≤600W/m² |
| Diameter of lamp holder(mm) | 500mm or 700mm(customer choose) |
| Shift of major and stand by lamps | Automatic |
| Bulb power W （24V） | 150 |
| Power supply | 220±20% 50HZ |
| Input power (VA) | 200±10% |
| Minimum height for installation(cm) | 270-320 |
1 head light
2 head light
Noted: Two light heads are available,before order ceiling type,please choose diameter 700mm or 500mm. 700mm diameter lamp holder,Illumination 160000≥Ec≥80000 500mm diameter lamp holder,Illumination 120000≥Ec≥60000 |
| Item | Specification |
| Diameter of light head (cm) | Combined type |
| Illumination(lux) | 500mm diameter lamp holder,Illumination 120000≥Ec≥60000 |
| Color temperature(K) | 4500±500 |
| Color rendering index(RA) | 100≥Ra≥85 |
| Diameter of Spot(cm) | 10-28 |
| Depth of light beam(mm) | ≥700 |
| Brightness level adjustment | CPU light diammer |
| The value of the total irradiance | <6m W/m²lx |
| Service range for temperature rise | ≤10℃ |
Total irradiance (temperature rise on the head of patient under surgical operation≤2℃） | ≤600W/m² |
| Diameter of lamp holder(mm) | 500mm |
| Shift of major and stand by lamps | Automatic |
| Bulb power W （24V） | 150 |
| Power supply | 220±20% 50HZ |
| Input power (VA) | 200±10% |
| Minimum height for installation(cm) | 270-320 |
Without battery
With battery

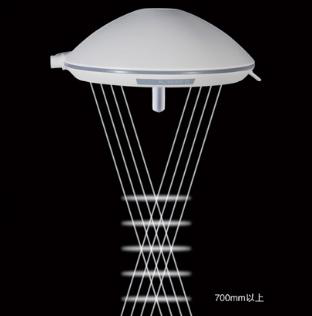

Depth lighting can reach700mm Easy operation Filtration system, filtration of ultraviolet light
Optional
Optional 1,Digital HD camera system
1080P HD camera:Panorama camera Specification
| Item | Specification | Item | Specification |
| Image sensor | 1/2.8 ″Cmos | Focal length f | F=3.8mm to 38.0mm |
| Resolution | 2,380,000 pixels | Auto focus | YES |
| Aspect ration | 16:9 | Image freeze | YES |
| SNR | >50dB | Contrast enhancement | YES |
| Optical zoom | 10x | White balance | Automatic and manual |
| Digital zoom | 12x | Video signal output | HD(High Definition):HD-SDI |
| The minimum working distance | 0mm(wide end)to 800mm(tele end) | Communication protocol | RS-485 |
| Maximum sperture | F1.8 to F3.4 | Warranty | 12 months |
Optional 2,HD DVR
| Item | Specification | Item | Specification |
| Operation system | Embedded linux | Grab function | Support JPEG capture function |
| System resources | Multi-channel real time video,multi-channel real time playback,USB backup | Recording mode | Manual recording,dynamic monitoring recording,timer recording |
| Operation interface | Interface 16 true color graphical,mouse support | Internal hard drive | Support two SATA hard disk interface |
| Image encoding | H.264 | Recording save | Local hard disk |
| Video standard | 1080P @30 fps | Communication | A standard 485 connector |
| Playback image quality | 1080P | USB | 2 USB connector port |
| Video input | HD-SDI | Power supply | 220V±10%,50HZ±2% |
| Video output | I VGA,I HDMI | Power | <15W (without hard drive) |
| Operation temperature | 0~+50℃ | Warranty | 12 months |
