Wondcon OSL 315 Surgical Light
Wondcon OSL 315
Wondcon OSL 315 series LED Operation shadowless lamp is available in multiple configurations to fit your operating room needs.
PRODUCT DETAILS
Features
Cool output LED light source
The removable handle sheath can be cleaned and disinfected.
Nano coating of heat sink has created an excellent heat dissipation effect.
Color temperature adjustable,
50,000 hour rated LED life.
Available in a single or dual head ceiling mount
12 months warranty
Options:
1,Video Camera: 1080P High definition
2,Monitor Arm: Provides options for Hi-Def
3,Solo arm or in combination with lights.
Video Camera Monitor with ceiling system 19 inch
Specification
Wondcon OSL 315 LED series LED Operation shadowless lamp
| Item | Specification | Item | Specification |
| Diameter of light head (cm) | Combined type | Average bulb life(hours) | 50000h |
| Illumination at 1m(lux) | 80000-160000 | Number of LEDS | 80/80 |
| L light field diameter at 1m (cm) | 10-28 | Optional color temperature (K) | 6700K≥Tc≥3500k |
| Light field diameter D10 mm | 180±40/180±40 | Heat to light ration(m W/m2 lx) | ＜6 |
| D50 mm | 110±35/110±35 | Power supply | 110-240V |

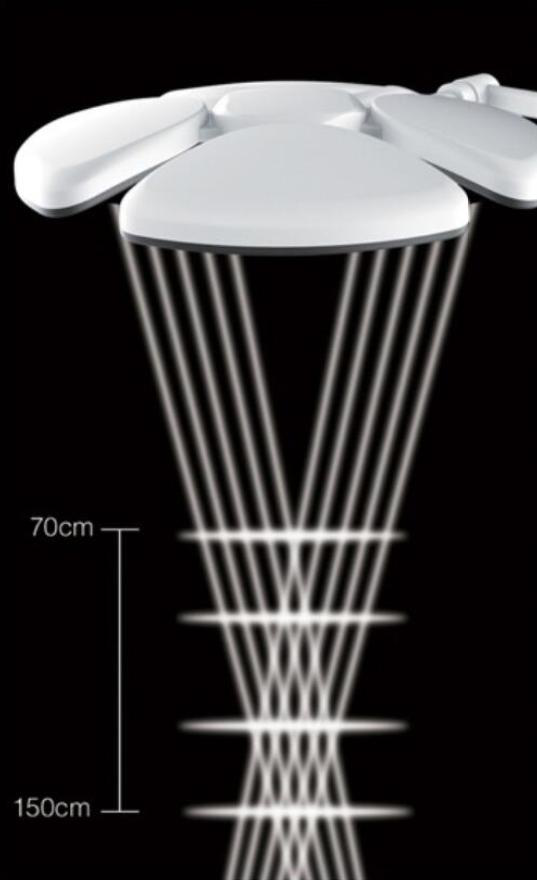

| Depth of illumination L1+L2 mm | 150 | Input power (VA) | 180 |
| Color rendering index(RA) | 100≥Ra≥85 | Ceiling height for installation(cm) | 270-320 |
| Working distance(cm) | 70-140 | Warranty | 12months |
R9 Index- Portraying Red
Color temperature adjustable
Optional
Optional 1,Digital HD camera system
1080P HD camera:Panorama camera Specification
| Item | Specification | Item | Specification |
| Image sensor | 1/2.8 ″Cmos | Focal length f | F=3.8mm to 38.0mm |
| Signal system | Digital 1080p | Sensitive Illumination color | 0.35 lux |
| Resolution | 2,380,000 pixels | Auto focus | YES |
| Aspect ration | 16:9 | Image freeze | YES |
| SNR | >50dB | Contrast enhancement | YES |
| Optical zoom | 10x | White balance | Automatic and manual |
| Digital zoom | 12x | Video signal output | HD(High Definition):HD-SDI |
| The minimum working distance | 0mm(wide end)to 800mm(tele end) | Communication protocol | RS-485 |
| Maximum sperture | F1.8 to F3.4 | Warranty | 12 months |
Video Camera Monitor with ceiling system 19 inch
Optional 2,HD DVR
| Item | Specification | Item | Specification |
| Operation system | Embedded linux | Grab function | Support JPEG capture function |
| System resources | Multi-channel real time video,multi-channel real time playback,USB backup | Recording mode | Manual recording,dynamic monitoring recording,timer recording |
| Operation interface | Interface 16 true color graphical,mouse support | Internal hard drive | Support two SATA hard disk interface |
| Image encoding | H.264 | Recording save | Local hard disk |
| Video standard | 1080P @30 fps | Communication | A standard 485 connector |
| Playback image quality | 1080P | USB | 2 USB connector port |
| Video input | HD-SDI | Power supply | 220V±10%,50HZ±2% |
| Video output | I VGA,I HDMI | Power | <15W (without hard drive) |
| Operation temperature | 0~+50℃ | Warranty | 12 months |
