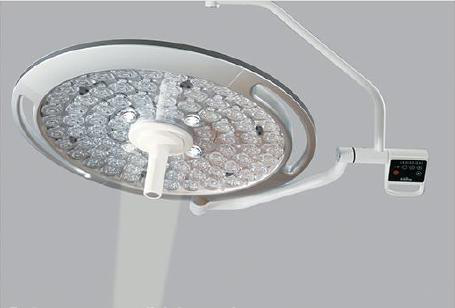

Wondcon OSL 314 Surgical Light
Wondcon OSL 314
Wondcon OSL 314 series LED Operation shadowless lamp provides bright, consistent illumination and excellent engineering
PRODUCT DETAILS
Features
Intelligent touch screen
The removable handle sheath can be cleaned and disinfected.
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.
12 months warranty
Adjustable temperature, R9 features that enhance the red color rendering index.
With the function of minimally invasive lighting and brain surgery lighting.
LED shadowless lamp life expectancy long (50000 h)
Options:
1,Video Camera: 1080P High definition
2,Monitor Arm: Provides options for Hi-Def
3,Solo arm or in combination with lights.
Video Camera Monitor with ceiling system 19 inch
Specification
Wondcon OSL 314 LED series LED Operation shadowless lamp
| Item | Specification | Item | Specification |
| Illumination at 1m(lux) | 160000 | Optional color temperature (K) | 6700K≥Tc≥3500k |
| Illumination at 1m(lux)on endo model(lux) | 15000 | Heat to light ration(m W/m2 lx) | ＜6 |
| Light field diameter D10 mm | 180±40/180±40 | Power supply | 110-240V |
| D50 mm | 110±35/110±35 | Input power (VA) | 180 |
| Depth of illumination L1+L2 mm | 150 | R11 | ≥97 |
| Color rendering index(RA) | 100≥Ra≥85 | R13 | ≥99 |
| Red color index R9 | R9≥97 | R15 | ≥98 |
| Average bulb life(hours) | 50000h | Ceiling height for installation(cm) | 270-320 |
| Number of LEDS | 84/84 | Warranty | 12months |

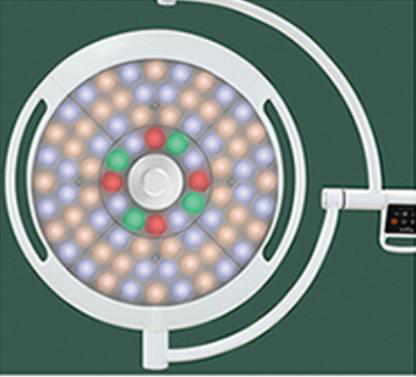

Color temperature adjustable
R9/R11 light mode: meet different surgery.

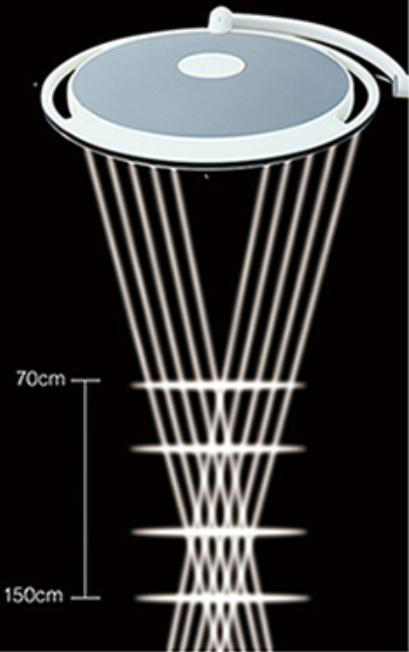

Depth lighting
High CRP
Optional
Optional 1,Digital HD camera system
1080P HD camera:Panorama camera Specification
| Item | Specification | Item | Specification |
| Image sensor | 1/2.8 ″Cmos | Focal length f | F=3.8mm to 38.0mm |
| Signal system | Digital 1080p | Sensitive Illumination color | 0.35 lux |
| Resolution | 2,380,000 pixels | Auto focus | YES |
| Aspect ration | 16:9 | Image freeze | YES |
| SNR | >50dB | Contrast enhancement | YES |
| Optical zoom | 10x | White balance | Automatic and manual |
| Digital zoom | 12x | Video signal output | HD(High Definition):HD-SDI |
| The minimum working distance | 0mm(wide end)to 800mm(tele end) | Communication protocol | RS-485 |
| Maximum sperture | F1.8 to F3.4 | Warranty | 12 months |
Optional 2,
| Item | Specification | Item | Specification |
| Operation system | Embedded linux | Grab function | Support JPEG capture function |
| System resources | Multi-channel real time video,multi-channel real time playback,USB backup | Recording mode | Manual recording,dynamic monitoring recording,timer recording |
| Operation interface | Interface 16 true color graphical,mouse support | Internal hard drive | Support two SATA hard disk interface |
| Image encoding | H.264 | Recording save | Local hard disk |
| Video standard | 1080P @30 fps | Communication | A standard 485 connector |
| Playback image quality | 1080P | USB | 2 USB connector port |
| Video input | HD-SDI | Power supply | 220V±10%,50HZ±2% |
| Video output | I VGA,I HDMI | Power | <15W (without hard drive) |
| Operation temperature | 0~+50℃ | Warranty | 12 months |
