Wondcon WME660B ECG Machine
Wondcon WME660B
Compact,stable and reliability ECG Machine.
PRODUCT DETAILS
Features
Portable and delicate design, easy to operate.
Accurate pulse pace identification function.
High accuracy digital filter, automatic baseline adjustment
Working modes: Manual, Automatic, Arrythmia Analysis, Storage
80mm, 3 channel format recording, excellent automatic interpretation
320x240 graphic 3.5 inch color LCD to simultaneously display ECG information
250 patient cases storage ( SD card storage is optional )
Detailed patient information record
Freeze function
Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for about 3 to 4 hours
USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )
Package List
Main unit Patient cable Limb electrodes Chest electrodes Power cable Grounding cable Fuse Paper axis Printing paper Operation manual | 1set 1set 1set (4pcs) 1set (4pcs) 1pc 1pc 2pcs 1pc 1roll 1copy |  |
Specification
| Lead | Standard 12 leads |
| Lead acquisition | 12bit/1000Hz (synchronously 12 leads) |
| Work mode | Manual / Auto / R-R Analysis |
| Filter | . AC Filter : 50Hz / 60Hz . EMG Filter : 25Hz / 45Hz . Anti-Drift Filter : 0.15Hz ( Adaptive ) |
| CMMR | 120dB ( with AC Filter ) |
| Input circuit | Floating ; Protection circuit againt Defibrillator effect |
| Input impedance | 50M |
| Input circuit current | 0.05 A |
| Patient current leakage | 10 A |
| Calibrating voltage | 1mV 2% |
| Voltage tolerance | 500mV |
| Time constant | 3.2s |
| Frequency response | 0.05 160Hz ( -3db ) |
| Noise level | 15 Vp-p |
| Inter-channel interference | 0.5mm |
| Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV ( 3%) |
| Recording mode | .1ch+, 3ch, 3ch+ .Default Man.Mode is 3ch format .Default Auto.Mode is 3ch+ format |
| Paper speed | 6.25, 12.5, 25, 50mm/s ( 3%) |
| Paper | 50mm x 20m roll paper |
| Working environment | Temperature 5-40 C; Humidity 25-95% |
| Power supply | . AC 110-230V ( 10%), 50/60Hz ( 1Hz ), 40VA . DC Built-in rechargeable battery,12V (1500mAh) |
| Dimension / Weight | 300mm x 230mm x 72mm, 2.8kgs |

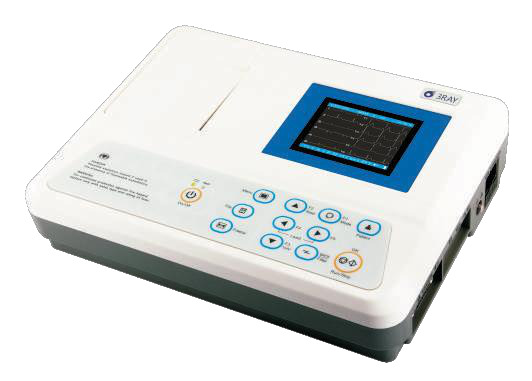

Product pictures
