WML-410A Electrolyte Analyzer
Wondcon WML-410A

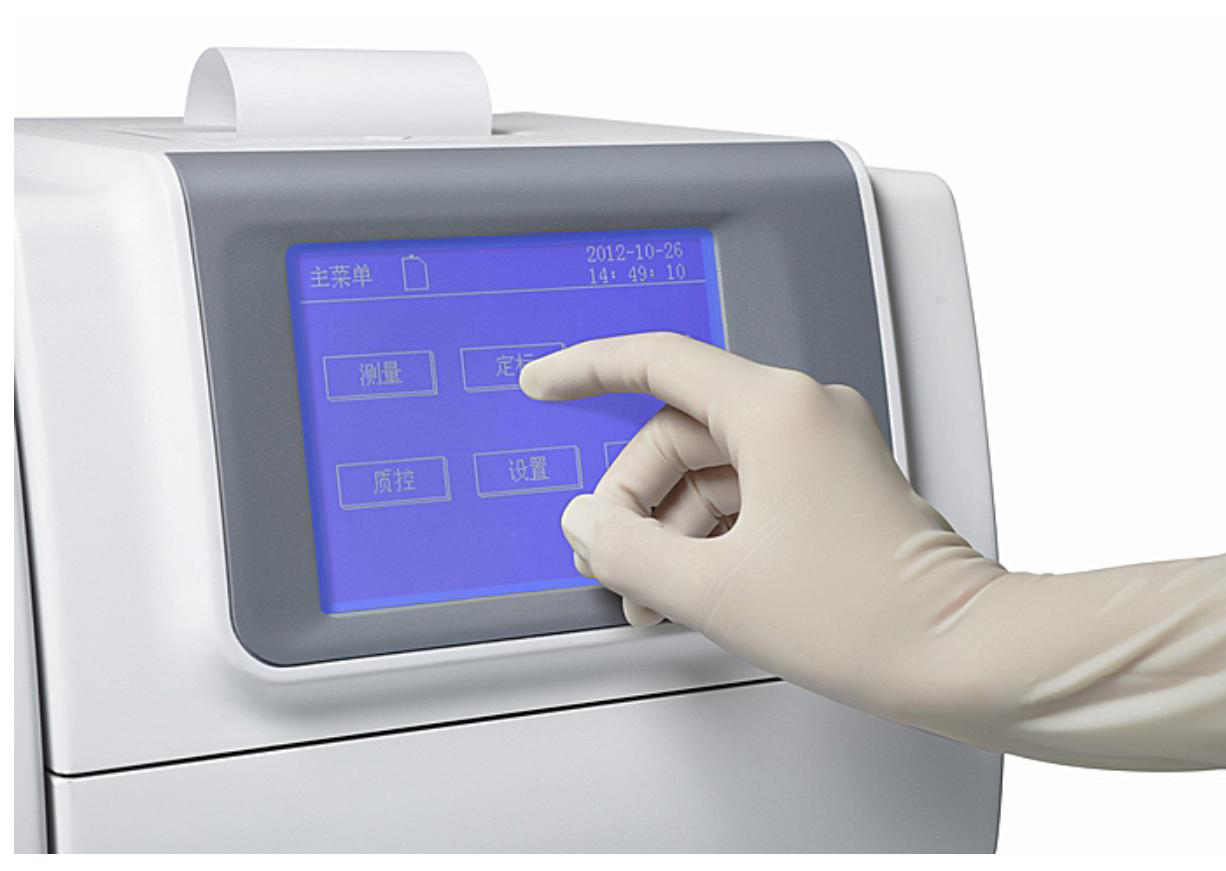

Wondcon WML-410A is an easy-to-use, color touch screen electrolyte analyzer with throughput of 60 samples per hour based on ISE method. Auto calibration, sampling, cleaning to assure accurate results. Maintenance-free and long life electrode is another competitive feature to make it stand out for patient use.
PRODUCT DETAILS
Features
Human beings use
Throughput: 60 samples per hour
Sample volume:100-200μL
Ion: K+, Na+, Cl-, iCa2+, pH, Li+, customized selection of ions, optional CO2
Calibration: Automatic or On-demand
Display: LCD
Closed reagent, real time monitoring reagent
Printer: Internal thermal printerStorage: Up to 50,000 results
Interface: RS-232, support LIS
Built-in thermal printer
Less and easy maintenance
12 months warranty
Specification
Gerenal technology Method Ion selective electrode Throughput 60 samples/hour Electrodes K+, Na+, Cl-, iCa2+, pH, Li+ ,TCO2 optional Parameters K+, Na+, Cl-, iCa2+, pH, Li+ ,TCO2,TCa, KT,AG Sample volume 100-200 ul Reagent volume 200-400 ul Parameter Eletrode lifespan 12 months Sample type Serum,CSF,etc Storage 50,000 samples Input 5.6 inch touch screen, barcode Output Internal printer Interface RS 232 Printer paper 80×35mm Dimension 430mm×275mm×410mm | Software Language English,Russian Unit mmol/L, mg/dl Print Auto print, manual print Liquid detection Yes Reagent inventory detectionYes Date Format YYYY-MM-DD,MM-DD-YYYY,DD-MM-YYYY Calibration Manual & Auto calibration Others Power requirement 100～240 AC, 50/60Hz Power ≤80VA Work temperature 15-30°C Relative humidity 20%-80% Atmospheric pressure 86.0kPa-106.0kPa Net weight 8 KG |
SPECIFICATIONS
Performance
Linearity
| Ion | Measurement range/(mmol/L) | Slope/mV |
| K+ | 0.3-20.00 | 40-70 |
| Na+ | 20.0-200.0 | 40-70 |
| Cl- | 20.0-200.0 | 40-70 |
| iCa2+ | 0.1-6.0 | 20-40 |
| Li+ | 0.2-5.0 | 20-50 |
| PH | 3.00-11.00 | 30-100 |
Carry over
Precision
Accuracy
| Ion | Accuracy | CV | Linearity | Stability |
| K+ | ≤ 2.0% | ≤ 1.0% | ≤ 2.0% | ≤ 2.0% |
| Na+ | ≤ 2.0% | ≤ 1.0% | ≤ 2.0% | ≤ 2.0% |
| Cl- | ≤ 2.0% | ≤ 1.0% | ≤ 2.0% | ≤ 2.0% |
| iCa2+ | ≤ 2.5% | ≤ 1.5% | ≤ 2.0% | ≤ 2.5% |
| Li+ | ≤ 2.5% | ≤ 1.5% | ≤ 2.0% | ≤ 2.5% |
| pH | ≤ 2.0% | ≤ 0.5% | ≤ 2.0% | ≤ 2.0% |
| TCO2 | ≤ 2.0% | ≤ 1.5% | ≤ 2.0% | ≤ 2.0% |

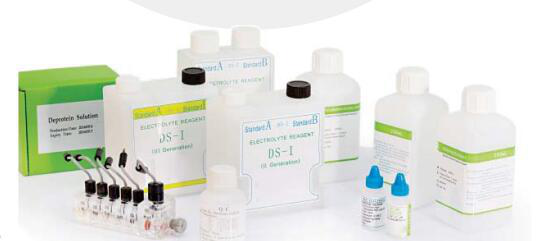

Reagent
DS-Ⅰ(NO.3) Standard A Standard B
Cleaning Solution
PVC Electrode Activating Solution
DS- Ref Ref. Filling Solution
DS- ISE Filling Solution
Deprotein Solution
