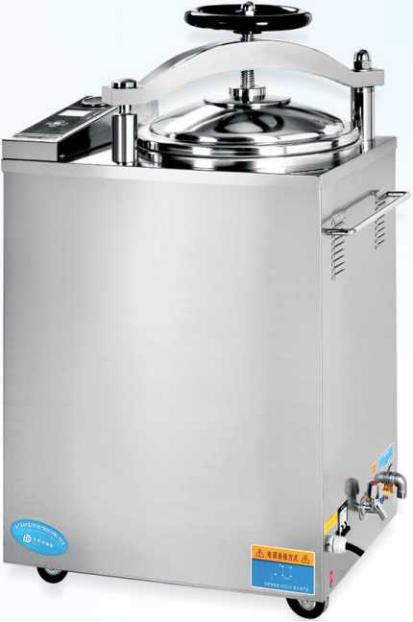

LS-35HG,LS-50HG,LS-75HG,LS-100HG Vertical Pressure Steam Sterilizer
LS-35HG,LS-50HG,LS-75HG,LS-100HG
Accuracy and durability,Mindry quality,competitive price!
PRODUCT DETAILS
Use
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for the scientific research institutes and the hospital laboratory.
Characteristics
Fully stainless steel structure.
Hand wheel type of quick-open door structure.
Door safety lock system.
Automatically controlled by computer.
LCD display of working status, touch type key.
Over temperature & over pressure auto-protection.
Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
Self-inflating type seal. Safe protection of water lacking. With perfect drying function.
Automatically shut off with beep reminding after sterilization.
With two stainless steel sterilizing baskets.
Fully automatic circulation (specifically use for clinical laboratory)
Technical Data
| Technical Data/MODEL | LS—35HG | LS-50HG | LS-75HG | LS-100HG |
| Chamber volume | 35L 318 x 450mm | 50L 340 x 550mm | 75L 400 x 600mm | 100L 440 x 650mm |
| Working pressure | 0.22Mpa | |||
| Working temperature | 134℃ | |||
| Max. working pressure | 0.23Mpa | |||
| Heat average | ≦ ± 1℃ | |||
| Timer range | 0~99min or 0~99hour59min | |||
| Temperature adjust range | 0~134℃ | |||
| Power | 2.5Kw/AC220V.5 | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 600x410x1030 | 650 x 410 x 1140 | 690x470x1140 | 730x510x1270 |
| Transport dimension | 730x500x1170 | 730 x 500 x 1290 | 760 x 550 x 1290 | 820 x 600 x 1380 |
| G.W/N.W | 96Kg/77Kg | 102Kg/83Kg | 120Kg/98Kg | 135Kg/110Kg |
