Wondcon WME910B Emergency portable ventilator
Wondcon WME910B
Accuracy and durability,Mindry quality,competitive price!
PRODUCT DETAILS
Features
Simple operation, compact design, reliable performance
Technical Specification
Patient Type: Adult, pediatric and infant patients
| Ventilation Mode |
• A/C-V with Sigh • A/C-P • SIMV-V • SIMV-P • SPONT/PSV • CPAP • Manual • Apnea Backup Ventilation |
| Parameter Settings |
• Tidal Volume (VT) 0-2000 ml • Frequency 1 to 120 bpm • I:E Ratio 4:1 to 1:10 • PEEP 0 to 30 mbar • O2 Concentration (FiO2) 40 to 100 Vol% • Trigger Type Pressure trigger, Flow trigger |
| Monitoring |
Ppeak, PEEP VT, MV ftotal, FiO2 Real Time Curves Pressure-time, Flow-time |
| Alarm |
• MV High • MV Low • Battery Low • FiO2 Low • FiO2 High • Paw Low • NO Vt • Apnea • Paw High • CP High • O2 Deficiency • EX. Power Lost • System Lost |
| Physical Specifications |
Gas Supply O2 Gauge Pressure 250-600KPa Dimensions (W x D x H) 300 mm x 156 mm x 168 mm Weight • Main unit Approx. 3.2 kg (7.3 lbs) • Main unit & Accessories Approx. 8 kg (17.6 lbs) Screen Size 5"LCD screen Battery Operating Time Approx. 4.5 hours Work Temperature -18 - 50℃ |
• Vehicle D/C power • A/C power adaptor
• 4.5h long lasting internal battery • External backup battery(optional)
Safty Guarantee
• Meets with EN1789 standard
• IPX4 waterproof level
Comprehensive Accessories
• Suction unit • 2.8L Oxygen cylinder kit • Oxygen sensor
• Hanging plate assembly • Bluetooth module
Applications

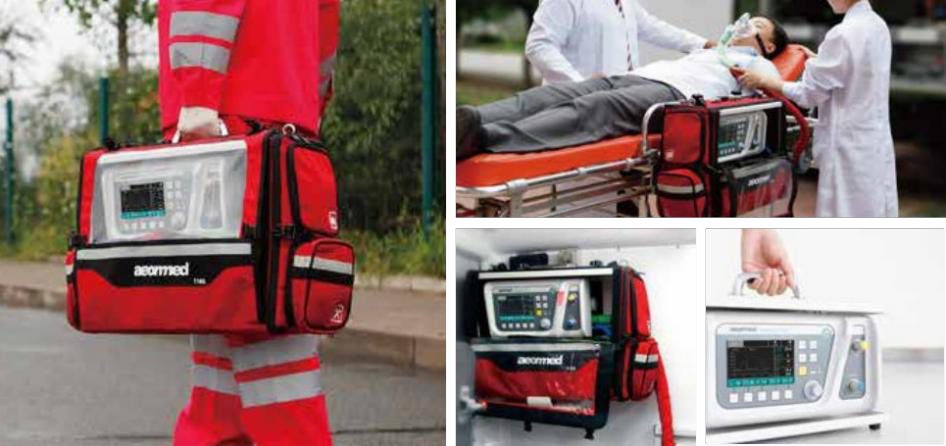

Emergency – Transport – Intra-hospital transfer – Recovery
Standard configuration
| Name | Qty |
| Ventilator Main Unit | 1 |
| Bracket assembly | 1 |
| Silicone threaded circuitΦ22 | 1 |
| Silicone breathing circuit Ф3×1.5 | 1.4 |
| Expiratory valve | 1 |
| Elbow | 1 |
| Face mask | 1 |
| Head band | 1 |
| Breathing bag 1L | 1 |
| Fuse T2AL250V | 2 |
| Filter | 2 |
| Oxygen pipe line (European standard) | 1 |
| Power adapter cable | 1 |
| Power cable (European standard) | 1 |
| Name | Qty |
| Oxygen sensor | 1 |
| Oxygen bottle kit | 1 |
| Name | Qty |
| Qualified certificate | 1 |
| Packing list | 1 |
