Wondcon WME910A Emergency portable ventilator
Wondcon WME910A
Accuracy and durability,Mindry quality,competitive price!
PRODUCT DETAILS
Features
Multi-functional emergency transport ventilator
Pneumatically driven electronically controlled, all parameters set in one step
Simple operation, compact design, reliable performance
Waveform display and multi-parameter monitoring
Backup apnea ventilation
Flexible power supply: A/C, D/C, rechargeable built-in battery
CE marked
Nominated emergency ventilator model in Beijing 2008 Olympic Games
Technical Specification
| Ventilation Mode |
• Assist/Control (A/C) • Synchronized Intermittent Mandatory Ventilation (SIMV) • Spontaneous ventilation (SPONT) • Manual ventilation (Manual) • Combined: VCV+SIGH |
| Parameter |
• Tidal volume: 0 ~ 1500ml • Respiratory rate: 4 ~ 99bpm (A/C mode) 4 ~ 40bpm (SIMV mode) • I:E ratio: 2:1 ~ 1:4 • FiO2: 48% ~ 100% • Pressure trigger sensitivity: -2 ~ 0kPa (above PEEP) • PEEP (option): 0.5 ~ 2kPa |
| Monitoring |
• Pressure values: Ppeak • Volume/flow values: Vt, MV • Time values: ftotal • Real time curves: Pressure-Time |
| Alarm |
| • Paw high, Paw low, Apnea, AC power failure, Battery low, O2 deficiency |
| Technical Data |
• Screen: LCD • Gas supply: O2, 0.28 ~ 0.6M Pa • Power supply: AC110 ~ 240V, 50Hz/60Hz, ≤65VA • Maximum security pressure: ≤6kPa • Compliance: ≤4mL/100Pa • Noise: ≤65dB(A) • Dimension(HxWxD): 175x170x300mm • Weight: 3.5kg |
| Environment Requirement |
• Temperature: -10℃~50℃(Operation) -20℃~55℃ (Storage) • Relative humidity: ≤85%, non-condensing (Operation) ≤93%, non-condensing (Storage) • Atmospheric pressure: 70~110kPa (Operation) 50~106kPa (Storage) |

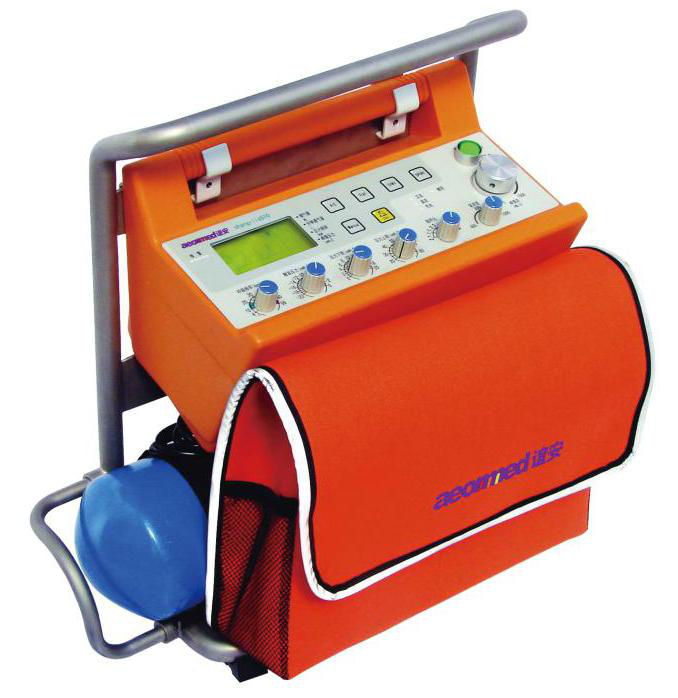

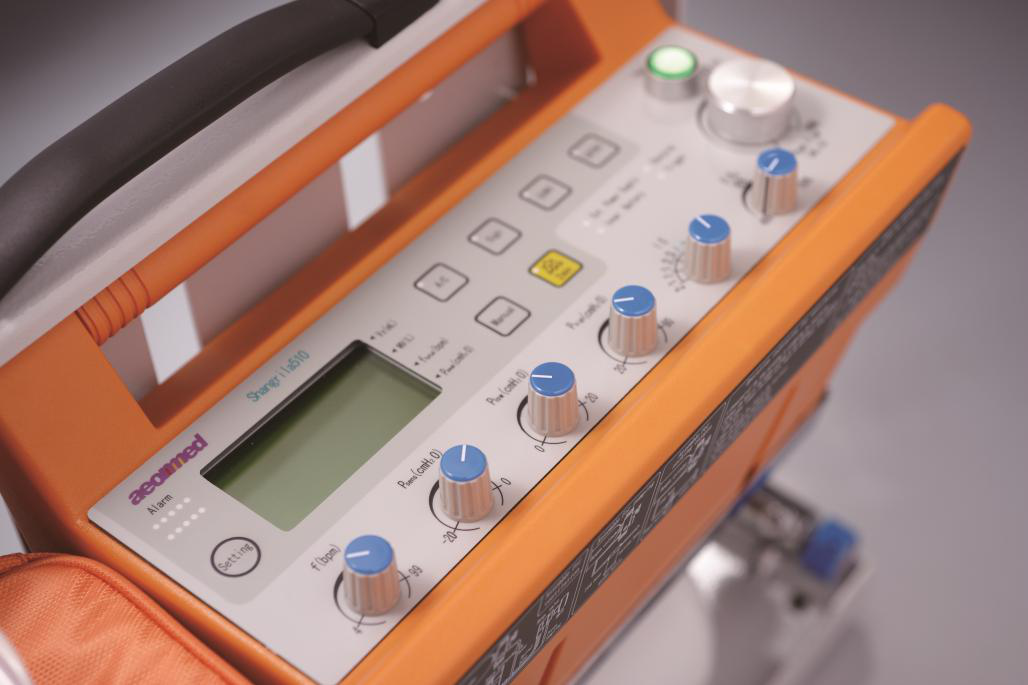

Product pictures
Standard configuration
| Ventilator Main Unit | 1 |
| Ventilator accessory | 1 |
| Oxygen pipe line (European standard) | 1 |
| Fuse T2AL250V | 2 |
| Power cable (European standard) | 1 |
| Power adapter cable | 1 |
| Vehicle power cable | 1 |
| Circuit clip | 3 |
| Breathing bag 1L | 1 |
| Silicone threaded breathing circuitФ22 | 1 |
| Ventilator user manual | 1 |
| Silicone breathing circuit Ф3×1.5 | 1 |
| The new hook and rack | 1 |
Optional configuration
| Name | Qty |
| Head band | 1 |
| Face mask | 1 |
| Fixed hanging board assembly | 1 |
| PEEP Valve Unit | 1 |
| Suction Unit | 1 |
| 2.8L Oxygen cylinder assembly (European standard) | 1 |
Attached file list
| Name | Qty |
| Qualified certificate | 1 |
| Packing list | 1 |
