Wondcon WME900B Basic Anesthesia Machine
Wondcon WME900B
compact,stable and reliability portable anesthesia machine.
PRODUCT DETAILS
Features
CE marked, meets EU clinical safety requirement
Automatic and manual modes can easily meet the ventilation requirement
2-tube of flow meters for 1-gas source meet long operation requirement
Optional FiO2 monitoring
Large LCD screen, various monitoring waveform and parameters in different colors
Integrated CO2 absorption system equipped with NO WATER VAPOR COAGULATION sensor and fast-release APL valve
Optional AGSS provides more protection

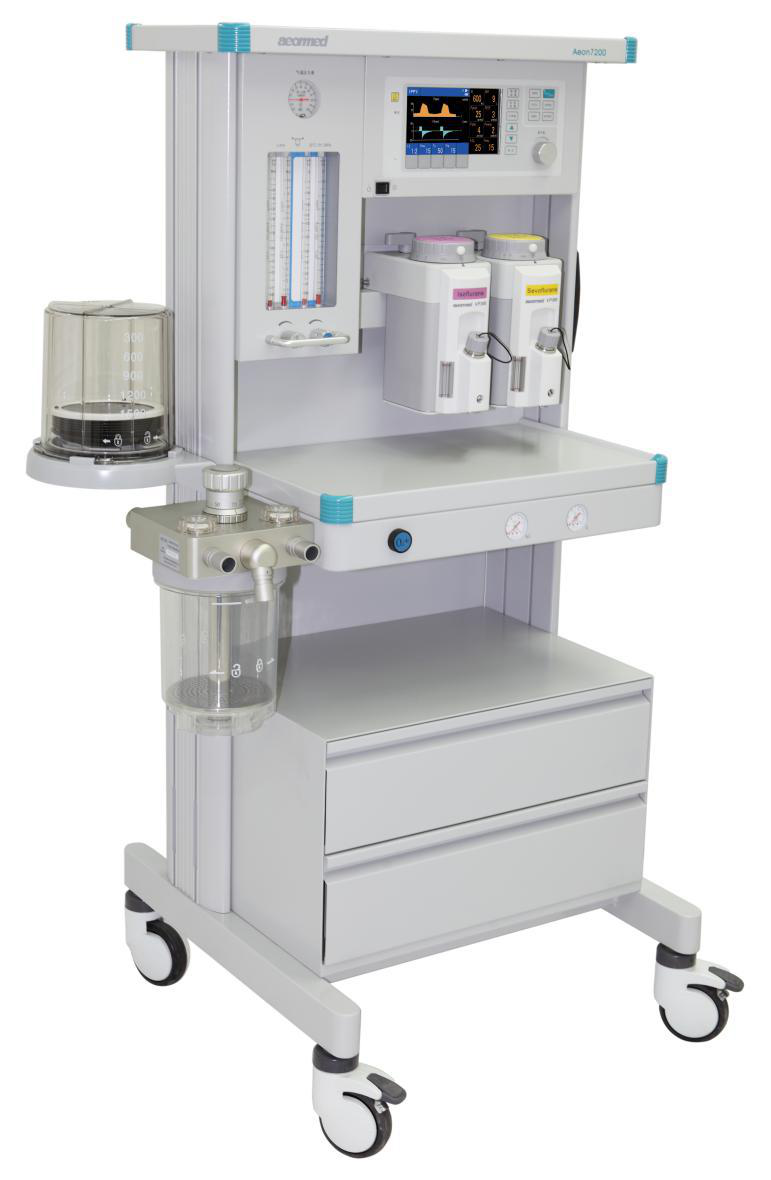

Product pictures
Standard configuration
| Name | Qty |
| Anesthetic Machine | 1 |
| Bellows | 1 |
| Breathing System | 1 |
| Adult Silicon Breathing Circuit | 1 |
| O2 Pipeline (NIST) | 1 |
| N2O Pipeline (NIST) | 1 |
| Hoop | 4 |
| Machine Cover | 1 |
| Ground wire | 1 |
| O-shaped rubber seal ring | 4 |
| Built-in battery | 1 |
| Adult PVC Breathing Circuit | 1 |
| Breathing Circuit clip | 3 |
| Power Cable (Europe) | 1 |
| Fuse | 4 |
| Fuse （250V/10A） | 2 |
| Tank Wrench | 1 |
| Name | Qty |
| Anesthetic Machine User Manual | 1 |
| PRODUCT QUALIFIED CERTIFICATE | 1 |
| Aeon7200A Packing List | 1 |
| Description | Qty |
| CO2 gas modular(MASIMO,Main stream) | 1 |
| CO2 and Anesthesia gas modular(MASIMO,Main stream) | 1 |
| IRMA Adult Adapter | 1 |
| IRMA Children Adapter | 1 |
| Main gas module holder | 1 |
| CO2 gas modular(Aeonmed,side stream,External) | 1 |
| Physical & Environmental Specification | Ventilator Specification |
Dimensions(H×W×D): 1356×845× 620mm Weight: 110kg (basic unit) Storage temperature: -20~+55℃ Working temperature: +10~+40℃ Storage humidity: ≤93% | Patient type: Adult, pediatric Ventilation modes: IPPV, Manual, Standby Setting: Navigator knob Tidal volume: 20~1500ml Ventilation frequency: 4~100bpm I:E ratio: 4:1~1:8 PEEP: 0~30 cmH2O (optional) Inspiratory plateau: OFF, 5%~60% Monitoring display: Display: 8.4" TFT color screen Pressure: Ppeak, Pplat, Pmean, PEEP Volumes: MV, Vt Breath rate Compliance Gas: FiO2 (optional) Graph display: P-t, F-t waveforms Alarm: High Airway Pressure/Low Airway Pressure High Minute Volume/Low Minute Volume High FiO2/Low FiO2 (when FiO2 function is enabled) Power failure O2 Supply failure, Apnea, ...... Alarm Silence: ≤120 seconds |
| Electrical Specification | |
Mains: 100~240V, 50/60Hz Battery: 24V DC, minimum 120 min Mains outlet: 3 | |
| Pneumatic Specification | |
Gas supply: 0.28~0.6MPa Flowmeters: O2: 0~1L/min; 1~10L/min Gas system: Oxygen supply failure alarm Oxygen supply failure protection O2 flush: 25~75L/min Working mode: Closed, Semi-closed, Semi-open Driven mode: Pneumatically driven and electronically controlled Safety valve: ≤8kPa Operating mode: Man. / Vent. Cylinder yokes: Optional | |
| Vaporizer | |
•Support 1 vaporizer (Selectatec® , optional standby vaporizer parking holder ) • Agent type: Halothane, Enflurane, Isoflurane, Sevoflurane • Filling type: Pour-fill, Key-fill, Quik-fil® |
