DC100APlus Medical Air Compressor
The compressor can be used for ventilator or anesthesia machine at at all levels, clinical first aid and respiratory treatment, and intensive care unit (ICU),operation room,scientific experiments, pneumatic instrumentation and other applications.Meet 9706.1-2007 "Medical Electrical Equipment Part General requirements for safety" of the I Class B equipment requirements.
PRODUCT DETAILS
Salient Feature：
Auto-start function when central gas system failure.
Build pressure Pressure safety valve no exceeds the safe pressure 600kPa
Oil-Free Compressor with temperature protection
Both operation mode at continuous and intermittent mode

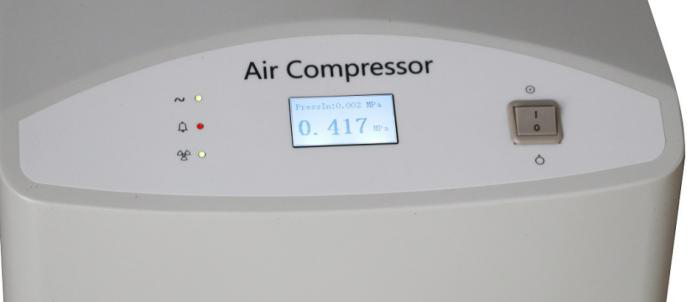

LCD screen to display output pressure and working time
With pressure adjustment knob,easy to adjust the needed pressure.
Compact design and easy to transfer
Assembled with clean control module, supplying cleaner and safe air to the patients
Effective sound-absorbing materials, reducing noise lower than 51db
Build-in temerpature tranmit system,will auto close while tempeprature decrease to the certain value
Match with various brand ventilator or anesthesia machine brand to supply gas
| Item | Specification | Remark |
| Output gas flow | ≥30L/min@3.0bar | |
| Working mode | Continuous and intermittent mode | |
| Peak flow at pressure 3 bar | 200 l.min–1/ 3 bar(At one atmospheric pressure, the flow time greater than 180 ml / min is not less than 0.8 s | |
| Output gas pressure | 0.4Mpa | Adjustable |
| Pressure adjust knob | 0.3～0.5Mpa | |
| Outlet connection | Quick-Plug,NIST，DISS or other as need | |
| Input connection | Quick-Plug.when it have central gas,connection,no central gas source ,no need connection. | |
| Output gas filter accuracy | 0.03μm | |
| Air compressor pump | 1sets | |
| Efficient rate for particle filtration | 99% | |
| Dew point of output gas | 0～10℃(5°C under the ambient temperature, while flow rate is 30ml/min) | |
| Tank capacity | 1.5L | |
| Tank Pressure | 6bar | |
| Noise | ＜51 dB(A) | |
| Indicator | working, warning, fan cooling | |
| LCD Screen | output pressure, total accumulated working time,low pressure alarm. | |
| Back up connector | When central gas fail,compressor start auto | |
| Power voltage | 220V±22V; Frequency: 50Hz±1Hz; 110V±11V; Frequency: 60Hz±1Hz | |
| Input power | ＜800W | |
| Alarm | Low pressure alarm；output pressure low than 0.23Mpa | |
| Working Environment | Temperature 0～40°C Humidity＜90RH | |
| Dimension | 501mm (L) ×554mm (W) ×550mm (H) | |
| Weight | 38 kg | |
| System composition | Main unit,power cable,air pipeline,filter sponge | |
